AI Orbit Cross-Flow

Orbit™ 2

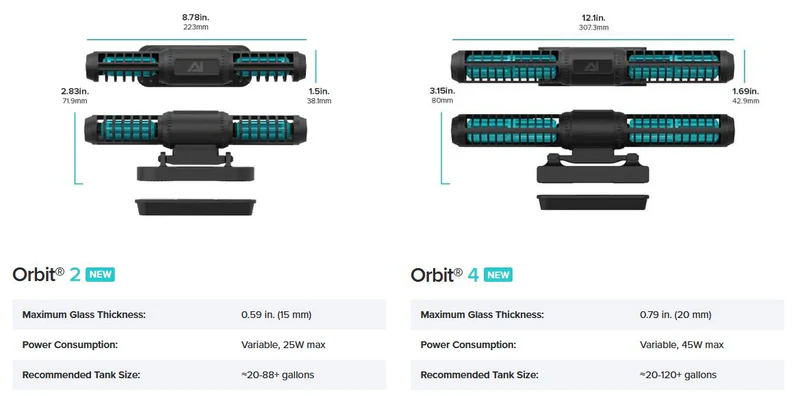

Dimensions
Width 8.78 in. (223 mm)
Height 2.83 in. (71.9 mm)
Depth 1.5 in. (38.1 mm)

Specifications
Maximum Glass Thickness 0.59 in. (15 mm)
Recommended Tank Size ≈20-88+ gallons
Power Consumption Variable, 25W max
Input 100–240VAC, 50-60Hz, 2A

What’s in the Box
AI Orbit™ 2 Pump with Integrated Driver
Mounting Magnet
Power Adapter with Universal Plug
Adapter Set
Quick Start Guide

Orbit™ 4
Dimensions
Width 12.1 in. (307.3 mm)
Height 3.15 in. (80 mm)
Depth 1.69 in. (42.9 mm)

Specifications
Maximum Glass Thickness 0.79 in. (20 mm)
Recommended Tank Size ≈20-120+ gallons
Power Consumption Variable, 45W max
Input 100–240VAC, 50-60Hz, 2A

What’s in the Box
AI Orbit™ 4 Pump with Integrated Driver
Mounting Magnet
Power Adapter with Universal Plug
Adapter Set
Quick Start Guide
