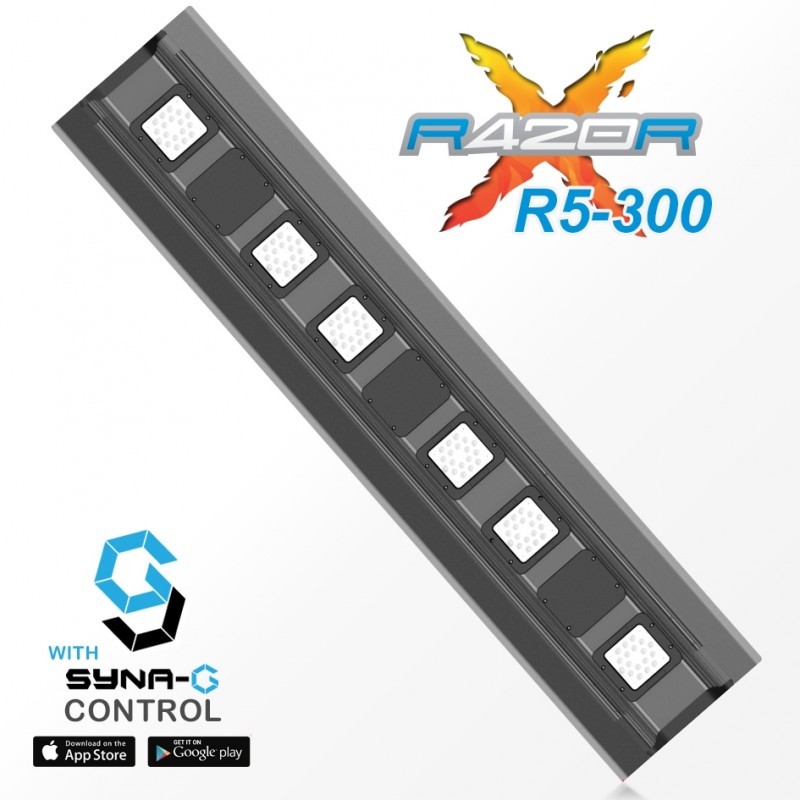

Maxspect RSX Razor R5-300

Maxspect RSX R5 Razor R5-300

Suitable for nano to 120-180cm Aquariums
FIXTURE COVERAGE
Effective: 64in x 22in | Maximum: 72in x 26in
Tank Mount Suitable for Aquariums: 47-59in Long
Lightweight Architectural Grade Aluminum Alloy Frame
Aerodynamic Passive Cooling Design
On-Board Advanced Controller with LED Display
Wireless Controllability with iOS and Android Devices*
Connect and Control up to 32 Razor X Fixtures
Enhances Coral Growth & Coloration
Utilizes the 410/420nm Spectrum
4 Programmable Channels
Mimic Nature from Dawn to Dusk
Includes Tank-top Mounting Legs
Utilizes Cree XLamp, XT-E & XP-E LED chips
Neptune Systems Apex Controller IOTA Ready**
*Optional iOS and Android control requires Maxspect Connect (ICV6), sold separately.

LIMITLESS SPECTRAL COMBINATIONS TO FIT YOUR TANK’S NEEDS
Built with a aerodynamic body, the Razor X 300 is a 4ft LED Lighting Fixture designed to seamlessly merge into your living area with elegance and style. The Razor X is an all-in-one LED system utilizing the latest in LED technology, including Cree XT-E and XP-E high intensity LED chips distributed in 4 different channels, offering impressive performance and versatility.

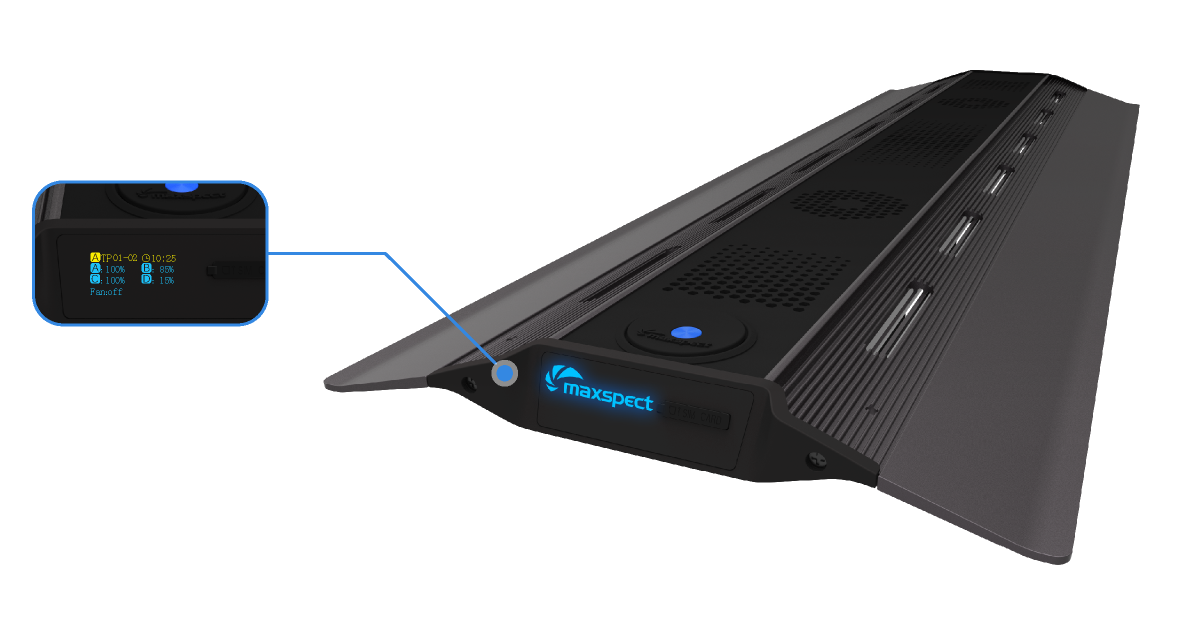

Built-in Controller
There’s no need to buy an additional controller just to be able to use your aquarium lighting, the Maxspect Razor X has control built-in. The built-in controller integrated in the Razor X features an OLED monitor and a control dial, from which user can easily setup all the functions for the fixture.

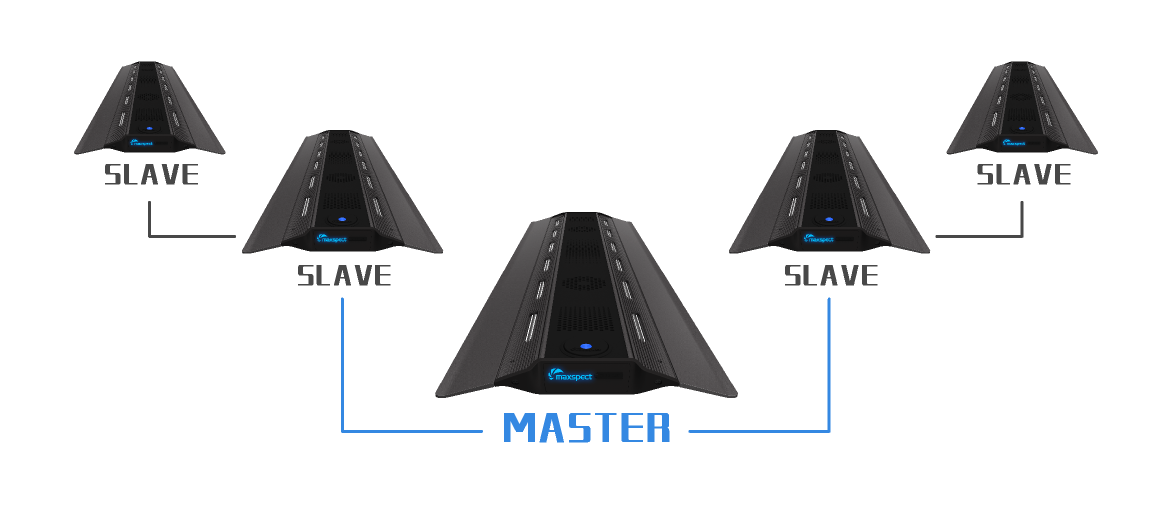

Standard or Master/Slave Mode
2 or more Razor X fixtures can be connected together through the Master/Slave mode to control them simultaneously – all Slave fixtures will follow the settings programmed on the Master fixture, saving time and effort on setting up multiple fixtures.

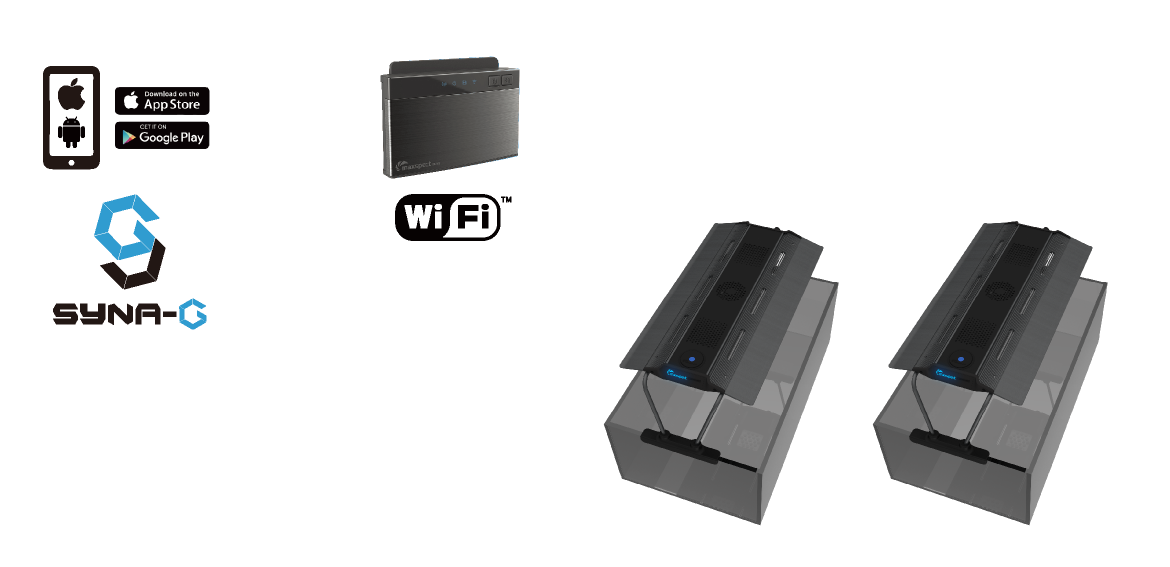

Control with iOS or Android Devices (Optional)
The Razor X can be wirelessly connected to a Maxspect Connect ICV6 controller (sold separately), which allows the Razor X fixture(s) and other capable Maxspect products to be controlled by iOS or Android devices through the Syna-G app.

Enhanced Growth and Coloration
The Razor X Lighting system is designed to provide all ranges of color spectrum required by corals and plants to enhance their growth rate, improve their coloration and at the same time giving your aquarium the most aesthetically pleasing combination of colors. The Razor X will meet the requirements of even the most sophisticated group of marine, reef and freshwater hobbyists.

410nm/420nm Super Actinic
The Razor X Lighting system also utilizes the 410/420nm Super Actinic LED chips, the spectrum that’s crucial for the success of any reef and water plant aquariums as it is required by Chlorophyll A for photosynthesis, where absorption peaks at 412nm.

Built-in Temperature Control System
The Razor X Lighting system deploys an ingenious aerodynamic design which draws cool air from underneath the fixture, through its body which also serves as a large heat sink, to dissipate heat passively. Equipped with fans to regulate fixture temperatures in enclosed environments. The fan(s) will be automatically engage when the temperature is above 55°C/131°F, and disengage when it is below 45°C/113° F.

R5X-300 TECHNICAL SPECIFICATIONS & WARRANTY
Suited for tanks 47in – 59in long
Dimensions
Length: 47.6in
Width: 10.2in
Height: 1.25in

Power Specifications Consumption
310w from the wall

LEDs
Number of Clusters: 6
Total Number of LED: 120

Channel Colors
Channel A: Deep Blue + Cool White

Channel B: Deep Blue + Light Blue

Channel C: Violet + Deep Blue

Channel D: Cyan + Deep Red + Warm White

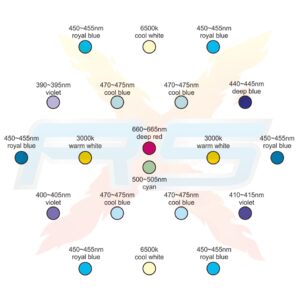

SPECIFICATION — LEDS
Channel LED Specs QTY per Cluster R5-100 R5-120 R5-200 R5-300
A Cree Xt-E 450-455nm Royal Blue 2 4 6 8 12
Cree XT-E 6500k Cool White 2 4 6 8 12
B Cree XB-D 450-455nm Royal Blue 4 8 12 16 24
EpiLED 470-475nm Cool Blue 4 8 12 16 24
C EpiLED 390-395nm Violet 1 2 3 4 6
EpiLED 400-405nm Violet 1 2 3 4 6
EpiLEE 410-415nm Violet 1 2 3 4 6
EpiLED 440-445nm Deep Blue 1 2 3 4 6
D EpiLED 500-505nm Cyan 1 2 3 4 6
EpiLED 660-665nm Deep Red 1 2 3 4 6
Cree XB-D 3000k Warm White 2 4 6 8 12

Culster Quantity 2 3 4 6

PLEASE NOTE: Fixture must have at least 15 cm (6 inches) of space above the fixture to allow proper heat dissipation. Do not place any foreign object on top of the fixture. Avoid splashing the fixture with water.

12 MONTH WARRANTY
Maxspect (Hong Kong) Limited warrants all Maxspect™ Razor X LED Lighting System products against defects in workmanship for a period of 12-months from the date of purchase. If a defect exists during the warranty period, Maxspect (Hong Kong) Limited at its option will either repair (using new or remanufactured parts) or replace (with a new or remanufactured unit) the product at no charge.

THE WARRANTY WILL NOT APPLY TO THE PRODUCT IF IT HAS BEEN DAMAGED BY MISUSE, ALTERATION, ACCIDENT, IMPROPER HANDLING OR OPERATION, OR IF UNAUTHORIZED REPAIRS ARE ATTEMPTED OR MADE. SOME EXAMPLES OF DAMAGES NOT COVERED BY WARRANTY INCLUDE, BUT ARE NOT LIMITED TO, USING AFTER-MARKET LED BULBS AND MODIFICATION OF THE CIRCUITRY, WHICH ARE PRESUMED TO BE DAMAGES RESULTING FROM MISUSE OR ABUSE.

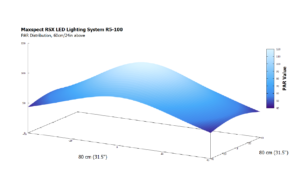

PAR Distribution Heatmap

A Cree XT-E 450-455nm Royal Blue 4 6 8 12
Cree XT-E 6500k Cool White 4 6 8 12
B Cree XB-D 450-455nm Royal Blue 8 12 16 24
EpiLED 470-475nm Cool Blue 8 12 16 24
C EpiLED 390-395nm Violet 2 3 4 6
EpiLED 400-405nm Violet 2 3 4 6
EpiLED 410-415nm Violet 2 3 4 6
EpiLED 440-445nm Deep Blue 2 3 4 6
D EpiLED 500-505nm Cyan 2 3 4 6
EpiLED 660-665nm Deep Red 2 3 4 6
Cree XB-D 3000K Warm White 4 6 8 12

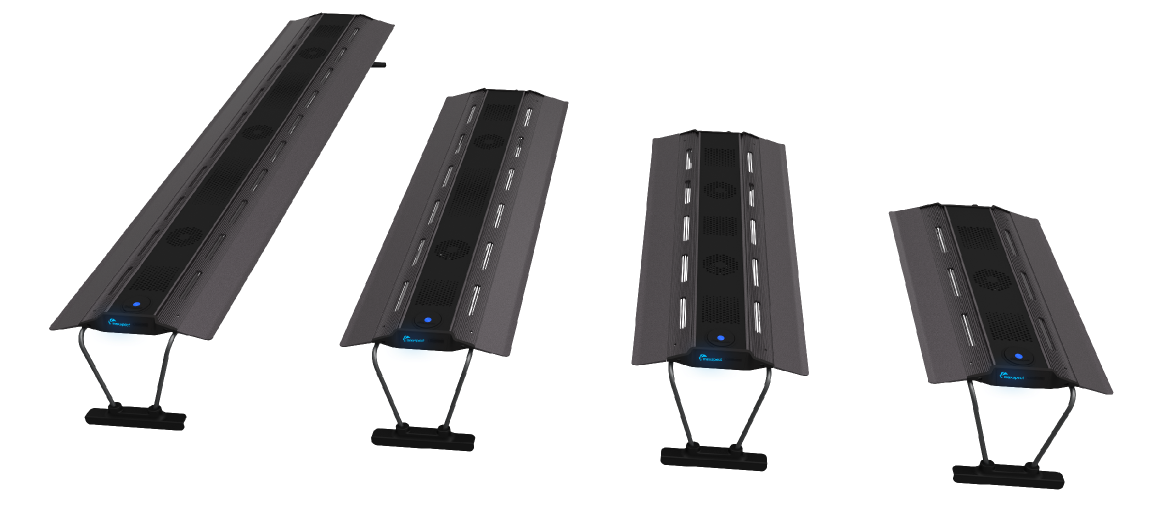

Model R5-100 R5-150 R5-200 R5-300
Cluster per Model 2 3 4 6
Dimension 468×260×170mm
18.4″×10.2″×6.7″ 700×260×170mm
27.6″×10.2″×6.7″ 839×260×170mm
33″×10.2″×6.7″ 1210×260×170mm
47.6″×10.2″×6.7″
Net Weight 2.1kg 3.1kg 4kg 5.5kg
Suit for Tank 45-70cm
17.7″-27.6″ 70-95cm
27.6″-37.4″ 85-120cm
33.5″-47.2″ 120-150cm
47.2″-59″
Rate Power 115W 160W 195W 305W
PSU Meanwell Irs-150-24
Input:3A/115VAC,1.7A/220VAC
Output:24V/6.5A Weight:939g Meanwell Irs-200-36
Input:4A/115VAC,2.2A/220VAC
Output:36V/5.9A Weight:1.23kg Meanwell Irs-200-24
Input:4A/115VAC,2.2A/220VAC
Output:24V/8.8A Weight:1.23kg Meanwell Irs-350-24
Input:6.8A/115VAC,3.4A/220VAC
Output:24V/14.6A Weight:1.23kg
RSX Spectrum
