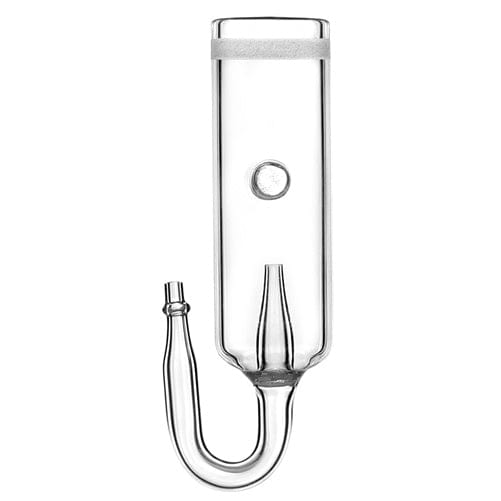

Seachem Glass Diffuser Bubble Counting 17mm

SEACHEM BUBBLE COUNTING DIFFUSER – GLASSWARE

• Seachem Bubble Counting Diffuser is a two in one – firstly you can diffuse the CO2 and count the bubbles being delivered

Description:

• Bubble Counting Diffuser
• Monitor rate of CO2 injection
• For aquariums up to 75 L
• Low profile design excellent for minimizing the visibility of the diffuser
• Simple and easy to use

Overview

The Bubble Counting Diffuser is a pollen style CO2 diffuser that connects to CO2 injection systems to easily disperse CO2 gas into the planted aquarium.

The built-in bubble counter allows for easy monitoring of the rate of CO2 injection.

The inclusion of a bubble counter in the diffuser makes the use of a bubble counter on the CO2 tank or in-line unnecessary.

The Bubble Counting Diffuser has a 17 mm disc.

Compatible with 6 mm (1/4″) – Standard Airline Tubing. Suction cup included.

Directions

• Rinse glassware with warm water.
• Attach suction cup and desired tubing (Compatible with 6 mm (1/4″) – Standard Airline Tubing) to the diffuser.
• To attach tubing to glassware, wet the inside of the tubing with water at the attachment point and carefully slide tubing over glass.
• The use of other lubricants is not advisable as these usually make the tubing slide off of the glassware too easily.
• To avoid breakage when removing tubing, do not pull tubing off of glassware. Instead, cut tubing carefully along the attachment length to release the glassware.
• Mount your diffuser using the suction cup(s).
• It should be positioned low in the aquarium.
• When removing or repositioning the diffuser, pull by the suction cup(s) rather than the glass to avoid breakage.
• Install check valve (not included) inline with tubing outside of the aquarium
• Once securely mounted, turn on CO2. Observe bubble count and adjust CO2 to desired flow rate.
